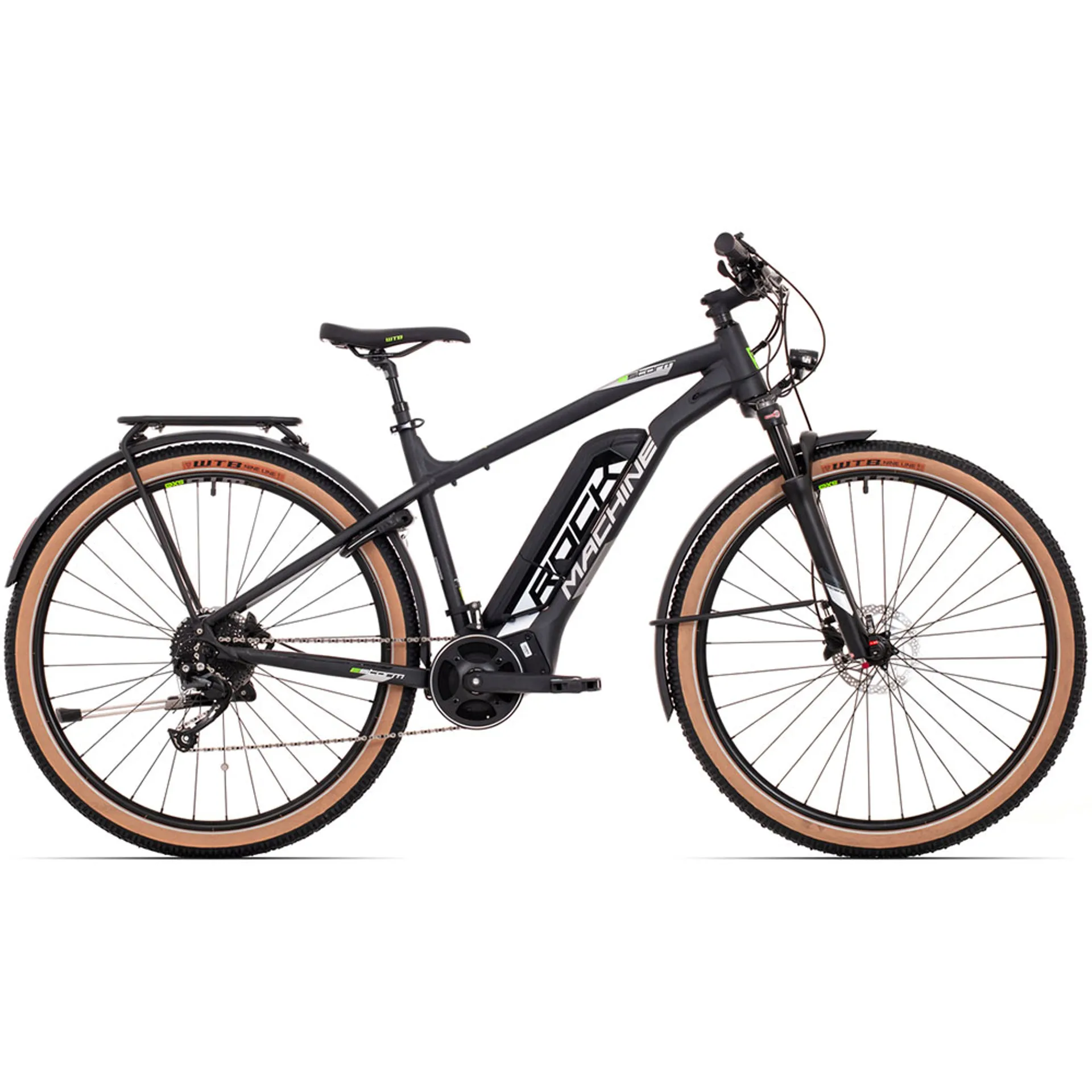

A popular 29â e-bike, fully equipped for touring, features a powerful sport drive mid-motor and a semi-integrated battery which can be easily removed. The sport drive system delivers superior power to reach a range of about 100 km. The comfortable geometry allows easy in-terrain control, and the wtb tyres and one1 finishing kit are there to help you set out on long trips. Touring or commuting, you will also value the bikeâs extras, including mudguards, lights supplied from the main battery, a kickstand, and a lock.
* sport drive motor with 90 nm, battery 500 wh and range up to 100 km
* Shimano altus 1x9 38 x 11-36, Shimano disc brakes
* frame with fun ride geometry to increase comfort&control
* SR Suntour mobie25 fork (75 mm)
* wtb nineline 29x2.25" tyres with reflective tape
**sport drive md250s**
md250s middle motor: fully integrated into the sport drive frame, with truly exceptional parameters offers maximal power of 500 w, the efficiency of more than 80%. It is a clear choice for use in mountain e-bikes. You will appreciate not only the performance but also its exceptionally quiet operation. Even in the steepest terrain, it will help you in a very significant way. The engine offers high quality, yet affordable choice among other middle engines on the market.
* **drive unit:** md250s
* **max. Torque:** 90 nm
* **range:** 100km (average of combined use of all modes and favourable conditions)
* **assist modes:** 1/2/3 + walk
**frameset**
* **colour:** matte black/dark grey/silver/radioactive yellow
* **frame:** alloy al-6061 t6 custom tubing, smooth welding, fun ride geometry, shark spine evo, sport drive mid motor, old 135x9, disc brake post mount, fender&kickstand ready dropout, replaceable rd hanger, inner cable routing
* **head set:** fsa orbit 1.5e no.57b, zero stack, 1-1/8"-1.5"
* **fork:** SR Suntour mobie25 rlr, tapered, coil, qr type, remote lockout, 75mm travel
* **sizes:** 15.0"(s), 17.0"(m), 19.0"(l), 21.0"(xl)
**e-bike**
* **e-bike system:** sport drive - middle drive unit
* **drive unit:** sport drive md250s, 36v, 250w, 90nm, torque/rotation sensor
* **battery:** sport drive, 36v, 500wh, on-frame mount
* **display:** sport drive grip display
* **charger:** sport drive standard charger, 36v/2a, charging time up to 7,5 hours
* **max support speed:** 25 km/h
* **charge cycle:** 1000/80% of original capacity
* **distance range:** 100 km (1st level of support)
**accessories**
* **front light:** axa blueline 30
* **rear light:** spanninga pling
**drivetrain**
* **gears:** 1x9
* **shifter:** Shimano altus sl-m2010-9r rapidfire plus, 9-speed
* **rear derailleur:** Shimano altus rd-m2000 shadow
* **crankset:** wheel top ed2l, 38t
* **cassette:** Shimano cs-hg200-9, 11-36t
* **chain:** kmc e9s
* **pedals:** marwi sp-827 sandblock non/slip pedal
**components**
* **handlebar:** one1 alloy, MTB al-325bt, 6deg upsweep, 9deg backsweep, 25mm rise, 740mm, 31.8mm
* **stem:** one1 tds-c301 alloy, 31.8xe65mm, +6deg
* **grips:** velo vlg-1879d2, ergo grip
* **brakes:** Shimano bl-mt200/br-mt200, 160/160 rotor, hydraulic disc brake
* **saddle:** wtb volt sport
* **seat post:** one1 alloy, sps 405, 27.2x350mm
**wheels**
* **front hub:** Shimano deore hb-m6010, 32h, center lock, 15x100mm thru type axle
* **rear hub:** Shimano alivio fh-m4050, 32h, center lock, m10x135mm, qr type
* **rims:** wtb sx19, 32h
* **tyres:** wtb nineline comp, 29x2.25", reflective tape
* **spokes:** sapim galvanized black
**weight**
* 24.9 kg (m size)
**please note: bike specification may be subject to change without notice**
